Horse Arena Builder in Illinois
Arenas, Round Pens & Indoor Facilities Built for Midwest Extremes
The Illinois Challenge
Illinois destroys arenas with relentless weather extremes. Temperature swings exceeding 100°F annually—from subzero polar vortexes to sweltering 100°F summers with oppressive humidity. Over 50 freeze-thaw cycles per year. Frost penetration to 42 inches in northern counties.
Heavy clay soils expand when wet, contract when dry, heaving and cracking improperly built bases. Spring flooding along the Mississippi, Illinois, and dozens of river systems. Tornadoes, derechos, ice storms—often in the same year.
Performance Footing is your expert consultant for Illinois arena construction. Whether you're building DIY, working with your own contractor, or need a turnkey solution—with additives or without—we're here to support you every step of the way.
Why Illinois Arenas Fail
Most arena problems trace back to the same issues:
Clay soil movement — Expansive clays heave and settle, cracking bases and creating uneven surfaces
Freeze-thaw destruction — 50+ annual cycles break down improperly constructed bases
Spring mud season — Inadequate drainage creates unusable surfaces March through May
Base contamination — Clay migrates into footing without proper separation layers
Flood damage — River valley locations overwhelm inadequate drainage systems
Properly engineered Illinois arenas handle all of this. Improperly built ones
become mud pits in spring and cracked, uneven surfaces by winter.
The Performance Footing Approach
BaseCore HD Geocell Technology
Our BaseCore HD geocell system addresses Oregon's toughest construction challenges:
50% less aggregate material required compared to traditional methods
3 inches of BaseCore = 12 inches of gravel in load-bearing capacity
2,000+ lbs/sq ft tensile strength with double-weld seams
75+ year durability — UV, chemical, and weather resistant
Clay soil separation — Prevents contamination that destroys conventional bases
Freeze-thaw stable HDPE construction survives 50+ annual cycles without cracking
BaseCore HD cells are almost 50% smaller than others on the market, providing superior stability
whether you're dealing with Chicago-area clay or central Illinois' prairie soils.
Footing Additives for Illinois Conditions
Performance Footing offers proven additives that perform through Illinois' humidity extremes and freeze-thaw cycles. Choosing an additive is optional—we support arena builds with or without them based on your goals and budget.
Cushioning unaffected by freezing—critical for Illinois winters. Helps manage moisture during humid summers. Effective from below zero to 115°F. Hypoallergenic, no metal pieces, no rubber odor.
Premium bio-based blend of polymerized rubber and fabrics. Maintains consistency through 100°F+ temperature swings. Reduces dust during dry periods while performing through spring mud season.
100% USDA-certified bio-based materials. Neoprene-free, allergen-free. Superior impact absorption that won't break down under freeze-thaw stress or summer humidity.
Organic fiber blended with natural elastomers for enhanced stability. Binding properties reduce displacement and help stabilize surfaces in clay soil conditions. Ideal for jumping arenas requiring consistent shock absorption year-round.
Not sure which option fits your discipline? Our team helps you evaluate your specific soil and climate conditions—or confirms that sand-only footing works for your situation.
Three Paths to Your Illinois Arena
For complete, professionally managed arena construction, Performance
Footing recommends Ground Shapers International (GSI).
Option 1
DIY with Expert Support
You manage construction. We provide the expertise.
Performance Footing consulting includes:
-
Sand gradation report review
-
Material estimates for your dimensions
-
Product selection guidance for your soil type and climate
-
Installation methodology support
Perfect for experienced equestrians comfortable managing their own timeline.
Option 2
Your Contractor, Our Specifications
You have a builder. We equip them for success.
Same consulting services ensure your excavator or contractor has precise specifications for clay soil management, freeze-thaw resistant construction, and proper drainage—whether you're in Lake County's clay or central Illinois' prairie soils.
Option 3
Turnkey Construction with Ground Shapers International
Led by Brenden with 15+ years exclusively building arenas, GSI delivers turnkey projects throughout Illinois:
-
Complete arena construction with or without BaseCore HD
-
Engineered for your specific soil conditions and regional climate
-
Built to survive polar vortexes and summer severe storms
-
Precision-leveled for consistent, long-term performance
-
Indoor arenas, covered facilities, outdoor arenas, round pens, and paddocks
Learn more at groundshapers.com
Serving All of Illinois
Performance Footing supports arena construction
across every Illinois region:
Chicagoland & Collar Counties:
Chicago, Aurora, Naperville, Joliet, Elgin, Waukegan, Arlington Heights, Schaumburg, Bolingbrook, Palatine, Wheaton, Downers Grove, Oak Brook
Western Illinois:
Galena, Quincy, Macomb, Galesburg, Moline, Rock Island, Geneseo, Princeton, Ottawa
Premier Equestrian Communities:
Barrington, Barrington Hills, South Barrington, Wayne, St. Charles, Campton Hills, Long Grove, Hawthorn Woods, Kildeer, Lake Forest, Libertyville, Grayslake
Southern Illinois:
Carbondale, Marion, Mount Vernon, Belleville, Edwardsville, O'Fallon, Collinsville
Northern Illinois:
Rockford, DeKalb, Crystal Lake, Woodstock, Marengo, Harvard, McHenry, Algonquin, Huntley, Hampshire
Regional Coverage:
Chicagoland, Rock River Valley, Illinois River Valley, Central Prairie, Western Illinois, Metro East, Southern Illinois, Kankakee Valley
Each region presents unique challenges—Lake County's heavy clay, river valley flooding, central Illinois' prairie drainage. Our consulting accounts for your specific location.
Central Illinois:
Springfield, Peoria, Bloomington, Normal, Champaign, Urbana, Decatur, Metamora, Washington, Eureka
Arena Types We Support
Indoor Arenas
Covered Arenas
Outdoor Arenas
Round Pens

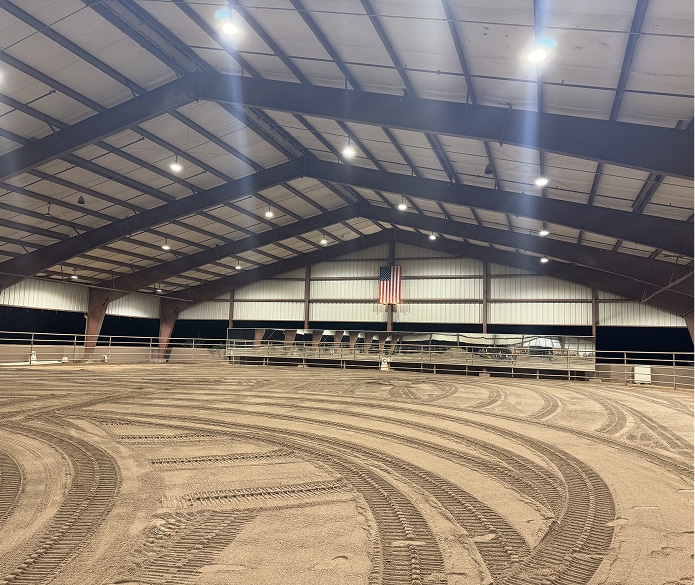

Indoor Arenas
Essential protection from Illinois' weather extremes. Wind resistance engineered for tornado and derecho potential. Condensation control for 40°F+ daily temperature differentials. Common dimensions from 60x120 feet (private) to 100x250 feet (major training centers).
Outdoor Arenas
Year-round usability with proper drainage and freeze-thaw engineering. Crowned surfaces with subsurface drainage networks. Perimeter collection manages adjacent runoff. Bases remain stable through 50+ annual freeze-thaw cycles.
Covered Arenas
Weather protection while reducing costs versus full enclosure. Structural systems handle thunderstorm downbursts common in Illinois summers. Retractable side panels allow seasonal adjustment. Snow load capacity for northern Illinois accumulation.
Round Pens
50-60 foot diameters recommended. Posts set 2-3 feet deep, below frost line in northern Illinois. Footing addresses the reality that Illinois' clay soils need proper separation and drainage for safe, consistent riding.
Construction Essentials
Site Prep:
Evaluate soil type (clay content), drainage patterns, flood zone status, and frost depth for your county. Critical for long-term stability.
Grading:
1-2% slope for drainage. Laser-guided precision essential for managing both spring flooding and summer downpours.
Base Layers:
Geotextile separation (critical for preventing clay contamination), BaseCore HD geocell, freeze-thaw resistant aggregate extending below frost line or using frost-resistant design.
Footing:
Quality sand with or without additives based on your discipline, humidity exposure, and maintenance preferences.
Your Expert Partner
Performance Footing understands Illinois.
We've built arenas that survive polar vortexes, drain effectively after spring flooding, and provide consistent surfaces despite 100-degree temperature swings and 50+ annual freeze-thaw cycles. From Barrington Hills to Southern Illinois, our team knows Midwest conditions.
Whether you choose additives or not, we're here to support you.
Free consultations include:
-
Sand gradation report analysis
-
Custom material calculations for your soil type
-
Product recommendations (or confirmation that sand-only works for you)
-
Connection to GSI for turnkey construction
