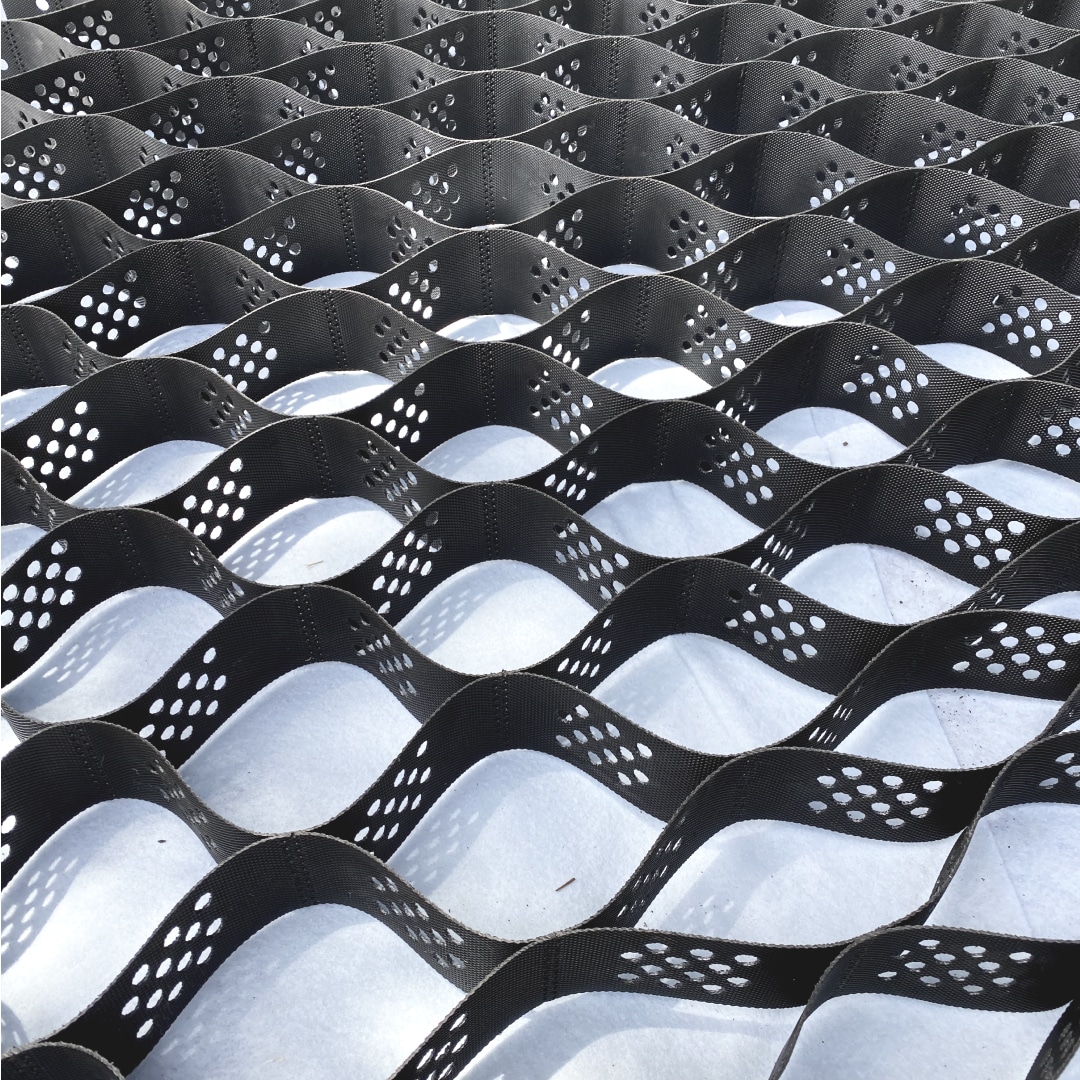

6″ BaseCore HD™ Geocell
Heavy-Duty Geocell Grid for Industrial Soil Stabilization & Load-Bearing Projects
The 6″ BaseCore HD™ Geocell is the ultimate ground reinforcement system for demanding construction and industrial jobs. Designed with heavy-duty seam strength and ultra-dense cell structure, this deep geocell panel delivers exceptional soil stabilization, erosion control, and load support for haul roads, equipment pads, slope retention, mining operations, and airstrips. Reduce excavation depth and aggregate costs while boosting performance with a geocell engineered for maximum confinement and long-term durability.
- 260 mm HD welds — cells ~35% denser than Standard, nearly 50% denser than typical geocells
- Industrial bearing capacity — sustained haul-truck, tracked, and equipment loads without rutting
- 2.6 mm reinforced HDPE walls · 75+ year UV-stable design life
- 9' × 18' expanded panel — 162 sq ft of coverage
$249.00 per panel · 162 sq ft
6" BaseCore HD™ in Detail

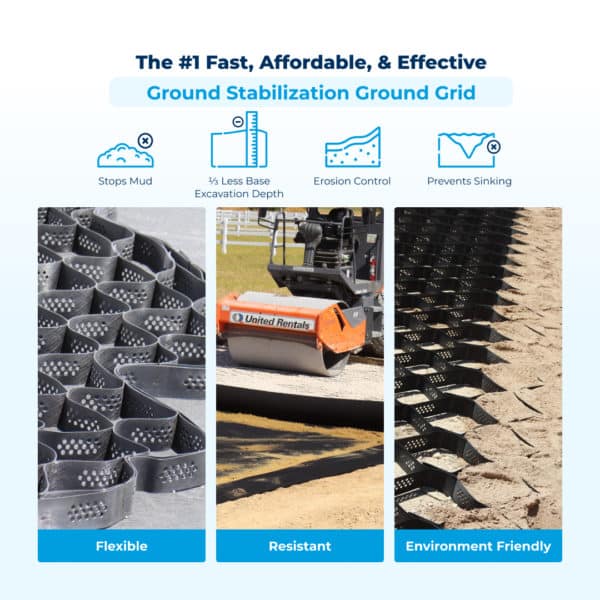

Benefits of BaseCore HD™
Engineered for the heaviest sustained loads
6″ BaseCore HD™ sets the standard for industrial stabilization — deeper confinement, thicker walls, and the tightest weld spacing in class.
Stops Mud
Confines aggregate so mud never works its way to the surface — even under heavy haul traffic and sustained rain.
Prevents Sinking
Spreads heavy axle loads across the panel and into the subgrade. Loaded trucks and tracked equipment stay on grade.
⅓ Less Base Excavation
6" HD confinement multiplies bearing capacity. Dig and haul a fraction of the aggregate traditional methods require.
Stable Ground
Smaller 7.2" × 6.0" cells lock fill in place — no shifting, rutting, or pumping under repeated heavy loading.
Erosion Control
Built-in cell perforations let water drain freely while the panel holds soil, gravel, or vegetation in place on steep slopes.
75+ Year Lifespan
UV-stable HDPE with reinforced welds. Engineered to outlast roads, pads, and structures built on top of it.
Why BaseCore HD™ costs more
Premium panel, premium return — engineered for the jobs Standard wasn't built for
The HD line uses denser cells, thicker reinforced walls, and tighter weld spacing. You pay more per panel — and recover it in less aggregate, less re-work, and decades more service life.
~35% denser cell pattern
260 mm weld spacing yields 7.2" × 6.0" cells — roughly 35% smaller than BaseCore™ Standard and nearly 50% smaller than typical industry geocells. More confinement walls per square foot means more lock-up under load.
Multiplied bearing capacity
Tighter confinement turns loose aggregate into a semi-rigid mattress. Result: sustained hoof, trailer, and skid-steer turning without rutting, pumping, or edge break-down where the Standard panel would deflect.
Pays back in fill savings
HD's confinement effect cuts required base depth — up to ⅓ less aggregate vs an un-stabilized base, and meaningfully less than Standard at the same depth. On a 100' × 200' arena that's tens of tons of stone you don't haul, spread, or pay for.
75+ year design life
Reinforced 1.7 mm UV-stable HDPE with welded seams engineered to outlast the structure built on top of it. One install, decades of stability — vs ~10 years for typical rolled-fabric solutions.
At a glance
6" BaseCore™ Standard vs 6" BaseCore HD™
Standard is the right answer for residential and mid-duty work. HD is what we spec when horses, livestock, commercial loads, or slope are in the picture.
Not sure which to spec? Call 877-835-0878 — we'll size it to your subgrade, traffic, and budget.
Save Material · Save Time
Stabilize your soil while saving on fill
6″ BaseCore HD multiplies bearing capacity. You need dramatically less depth — and less material — to support the same load.
Without geocell
15″
Sand
500% more material
than 6″ BaseCore HD
Without geocell
9″
Gravel
300% more material
than 6″ BaseCore HD
With BaseCore HD
6″
BaseCore HD™
Equivalent or better load support
with proper fill
6″ BaseCore HD™ Applications
The increased strength and depth of 6″ BaseCore HD makes it the foundation of choice for heavy load-bearing construction — places where lighter geocells would deflect or fail.
Road Construction
Build long-lasting roads on weak subgrade without thick aggregate sections. The 6" HD panel handles sustained truck and equipment traffic.
Parking Lots
Commercial and industrial lots that stay flat, rut-free, and free-draining under continuous heavy use.
Air Strips
Small-aircraft strips and helipads where deep confinement and drainage are non-negotiable. No soft spots after rain.
Mining & Oil Roads
Heavy haul roads and access drives that stay passable through wet seasons. HD weld spacing handles repeated heavy-axle loading.
Slopes
Stabilize steep 1:1 to 3:1 slopes for vegetation, riprap, or gravel cover. Cell walls hold fill in place against gravity and runoff.
Driveways
Long commercial driveways and rural access roads that never need re-grading — pour, drop, or fill with the finished surface of your choice.

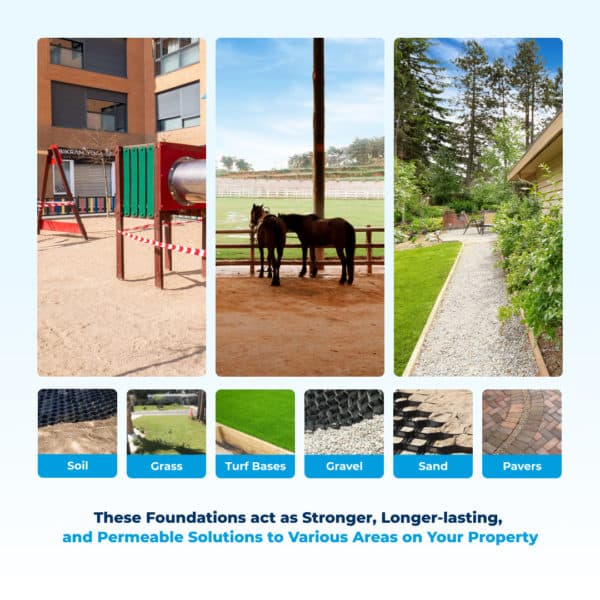

Pick Your Fill
Stabilize anything from grass to concrete
6″ BaseCore HD confines whatever you pour into it. Pick the fill that matches your finished surface — the panel does the structural work either way.
Soil
Slope stabilization and vegetated surfaces — the cells hold topsoil in place against rain and runoff.
Sand
Equestrian footings, beach access, and shoreline paths — confinement stops sand from migrating.
Concrete
Industrial pads, crane mats, and retaining structures — the HD cells eliminate edge cracking and shifting.
Grass
Permeable green driveways, overflow parking, and fire lanes — vegetation grows in, structure stays underneath.
Gravel
Driveways, parking, and road base — angular 3/4" minus interlocks inside the cells for a rock-solid surface.
Pavers
Patios, walkways, and plazas — confined base layer eliminates the heave and settlement that ruins paver installs.
Order Online
Order 6″ BaseCore HD™ Geocell
Each panel expands to 9′ × 18′ — 162 sq ft of coverage.
9' × 18'
162 sq ft expanded · 6″ cell depth
$249
$1.54/sq ft
Quantity (panels)
Complete your install
Most installs need these to lock panels together, anchor on slopes, or ensure the infill doesnt migrate into your subbase.
Your selection
6″ BaseCore HD™ — 9' × 18'
1 panel · 162 sq ft
Build your BaseCore™ order — instant panel count & pricing
Enter your dimensions and we'll calculate the exact panels, BaseClips, and (only if your grade calls for it) anchoring you need. What we quote matches what we ship.
Anchoring becomes structurally necessary above 15°.
Recommended at install
Best Seller
Geotextile
Sits under panels to separate subgrade from fill — keeps fines from pumping up and contaminating the base.
BaseClips (Pack of 45)
Lock adjacent panels together with zero shift — engineered for HD panel seams.
BaseCaps (Pack of 12)
Flush-mount anchor caps for clean finished edges and perimeter anchoring.
Frequently asked questions
Technical Specs
View the full spec sheet
Deepest panel in the BaseCore HD line — built for haul roads, industrial pads, and steep slopes.
