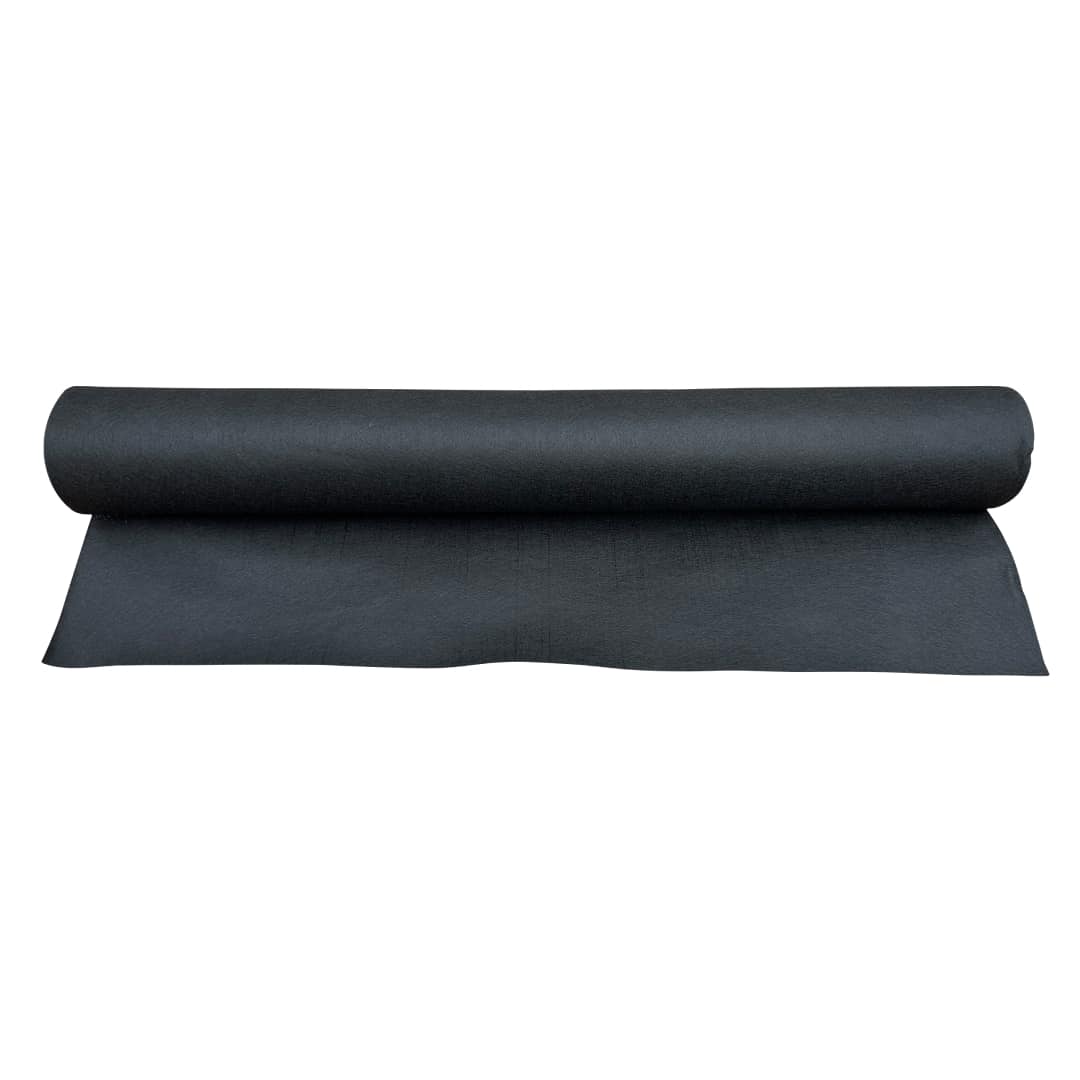

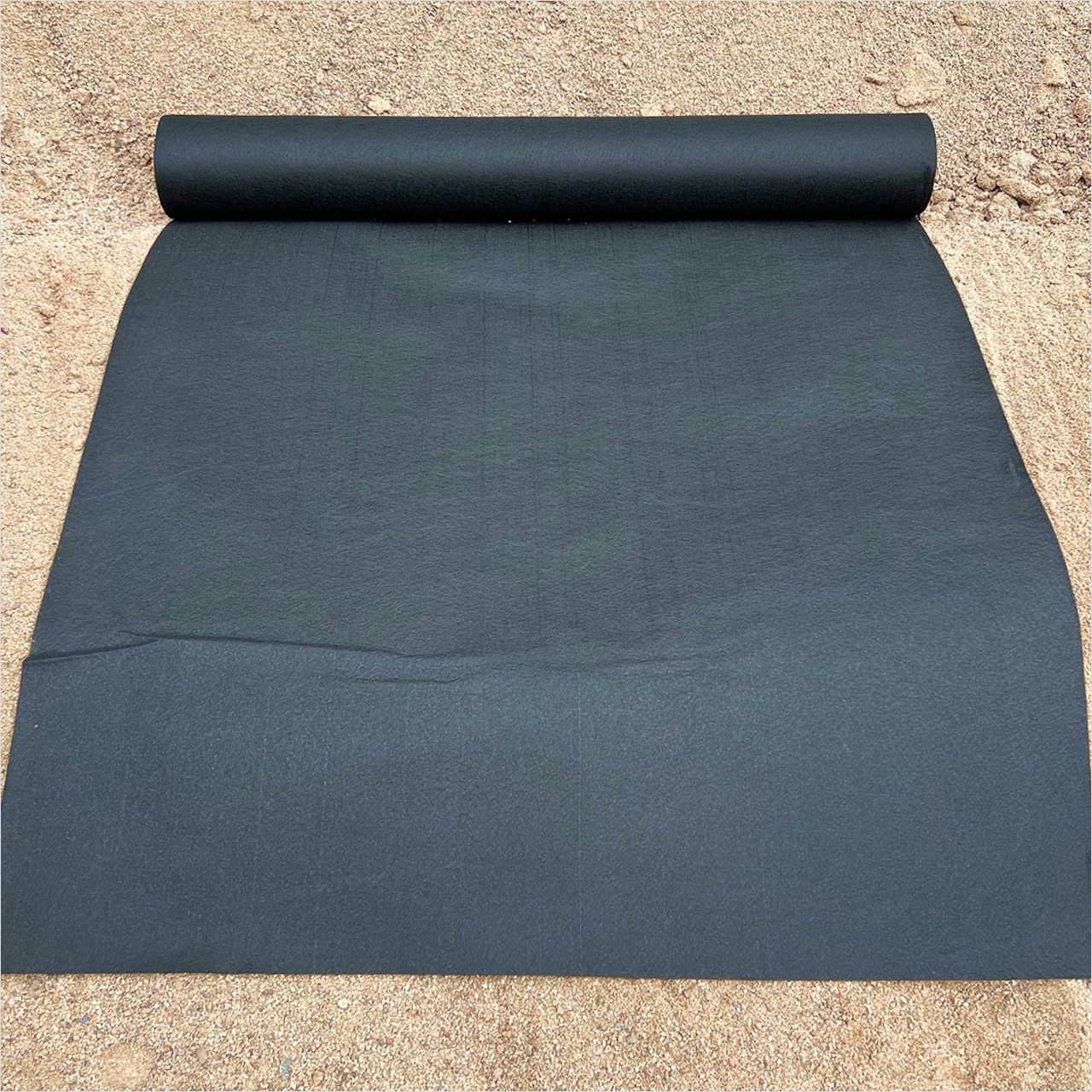

For the more technical, our geotextile fabric is made of 5.9oz polypropylene (PET) fabric that is needle-punched and 1.6mm thick. It is extremely strong, with a tensile strength of 2246lbs, UV resistant, puncture strength of 404 lbs and has a water flow rate of 62 gallons/min per square foot.
Instructions:

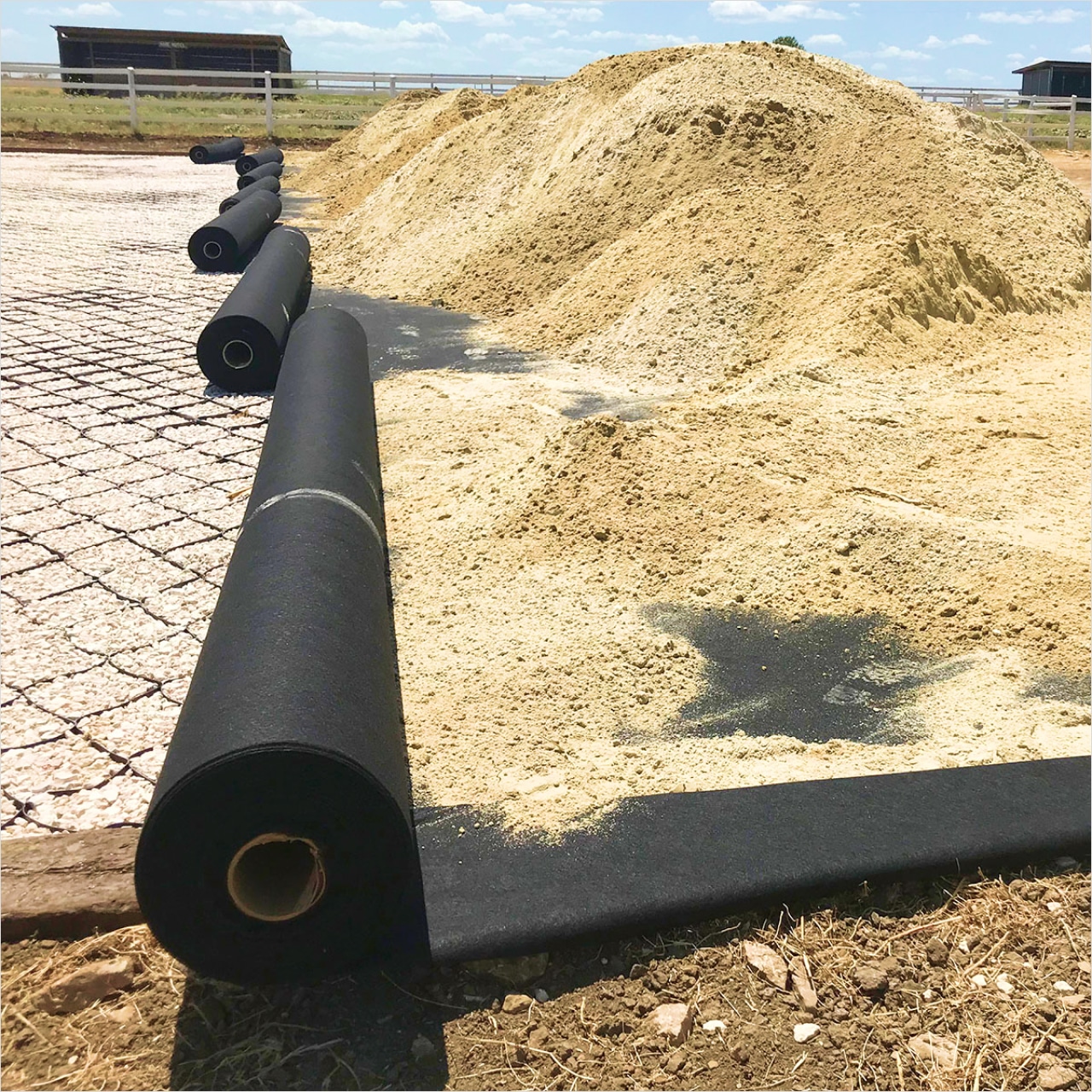

Once you have prepped the location where you will be utilizing the Geotextile Fabric, the installation process is quick and easy.

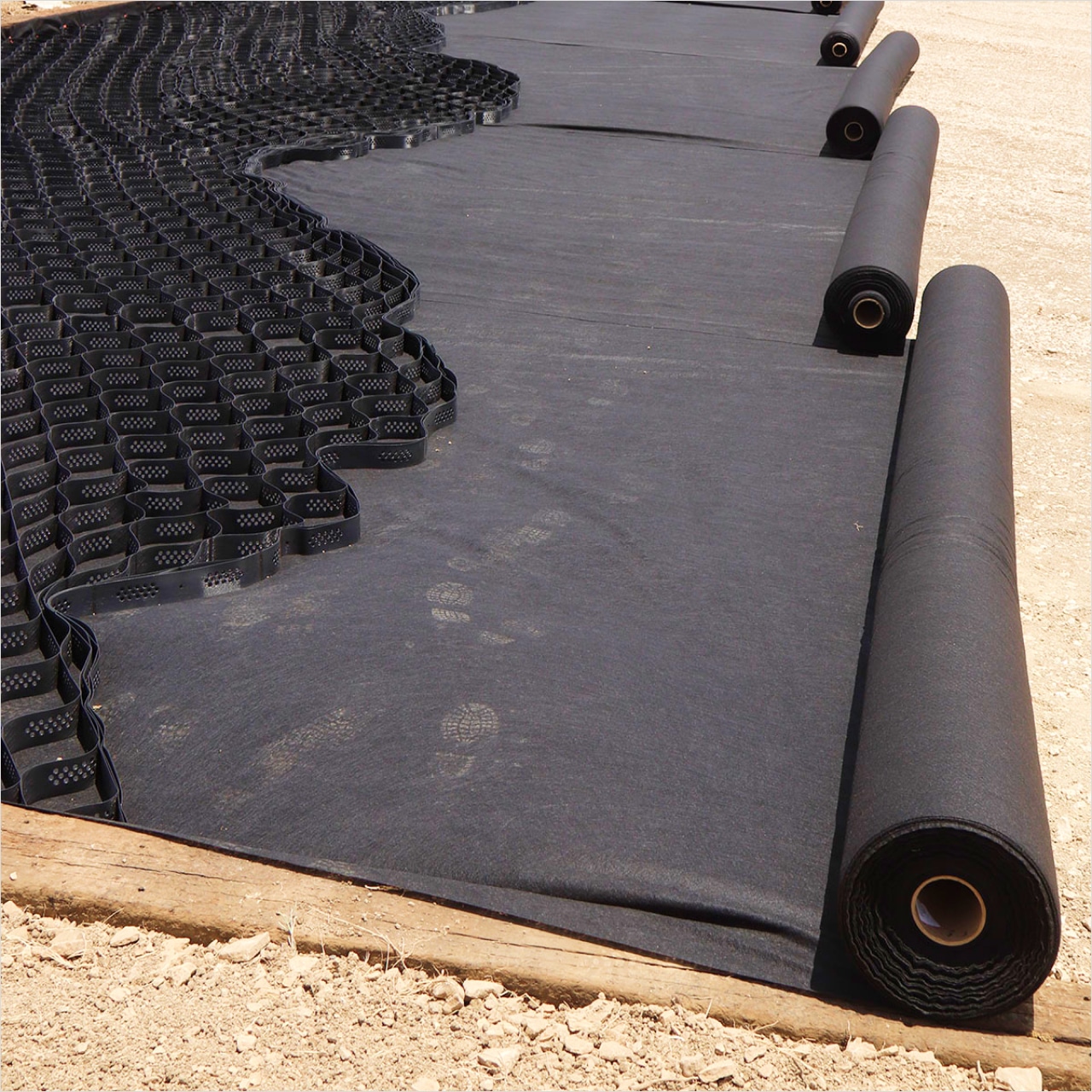

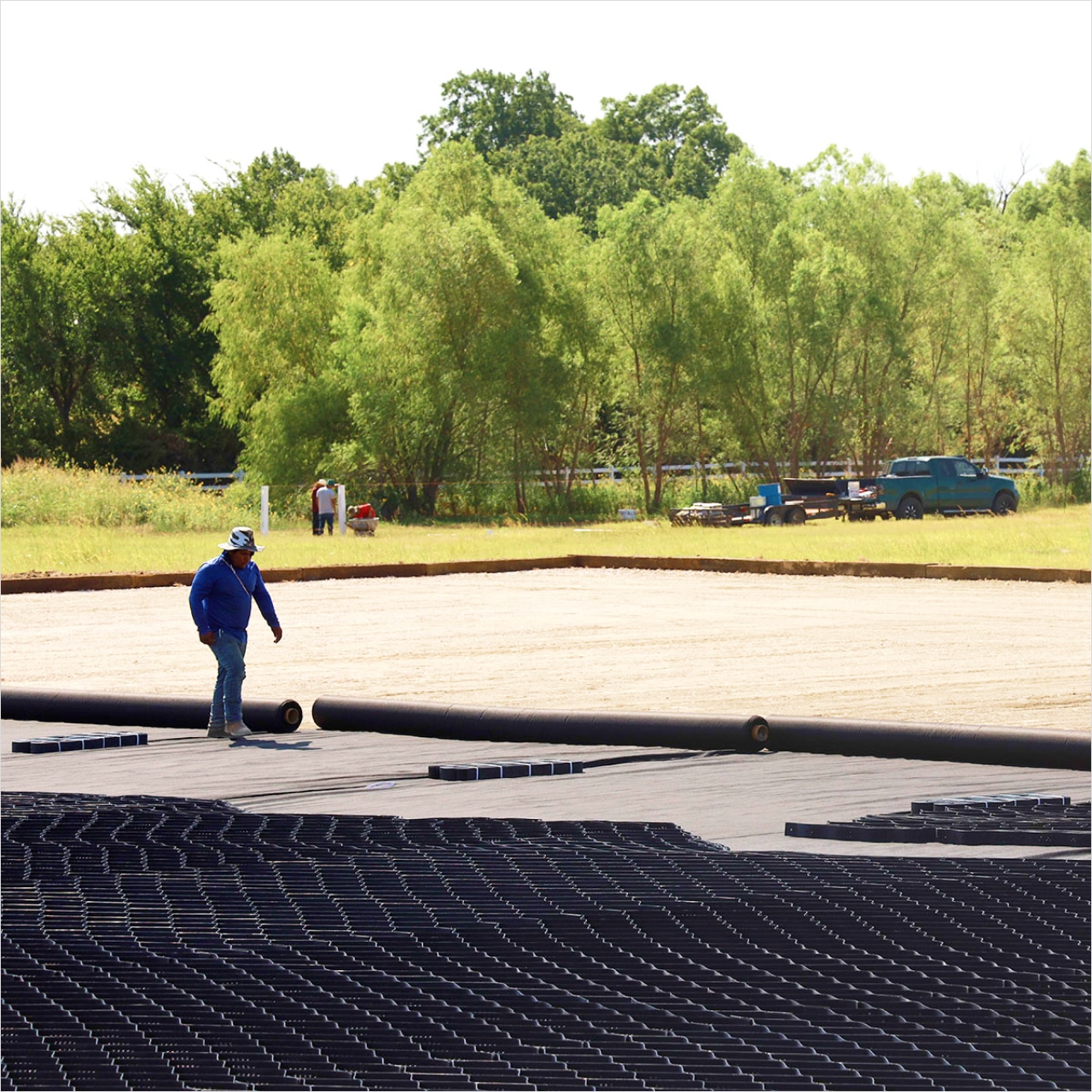

If you are doing a larger area such as a parking pad or arena make sure you roll the fabric over the entire area where the panels will be positioned. Overlap all edges around the BaseCore™️ and each seam between the fabric pieces by approximately 8-12”.
Property | Test Method | Metric Value | English Value |
---|---|---|---|
Mass Per Until Area | ASTM D 5261s | 200 g/m2 | 5.9 oz/yd2 |
Thickness | ASTM D 5199 | 1.6 mm | 149 US Sieve |
Tensile Strength | ASTM D 4595 | 10 KN/m | 2246 lbs |
Elongation | ASTM D 4595 | 50% | 50% |
Apparent Opening Size | ASTM D 4751 | 0.15 mm | 14 US Sieve |
Permittivity | ASTM D 4491 | NA | NA |
Water Flow Rate | ASTM D 4491 | 2500 L/min/m2 | 62 g/min/sf |
Trapezoidal Tear Strength | ASTM D 4533 | 0.28 KN | 63 lbs |
CBR Puncture Strength | ASTM D 6241 | 1.80 KN | 404 lbs |
UV Resistance (% retained after 500 hours) |
ASTM D 4355 | 70% | 70% |
Alison M –
Ordered a few rolls for a new round pen. Thick stuff and works great. I appreciated all the ideas from the performance footing staff in this rebuild.
