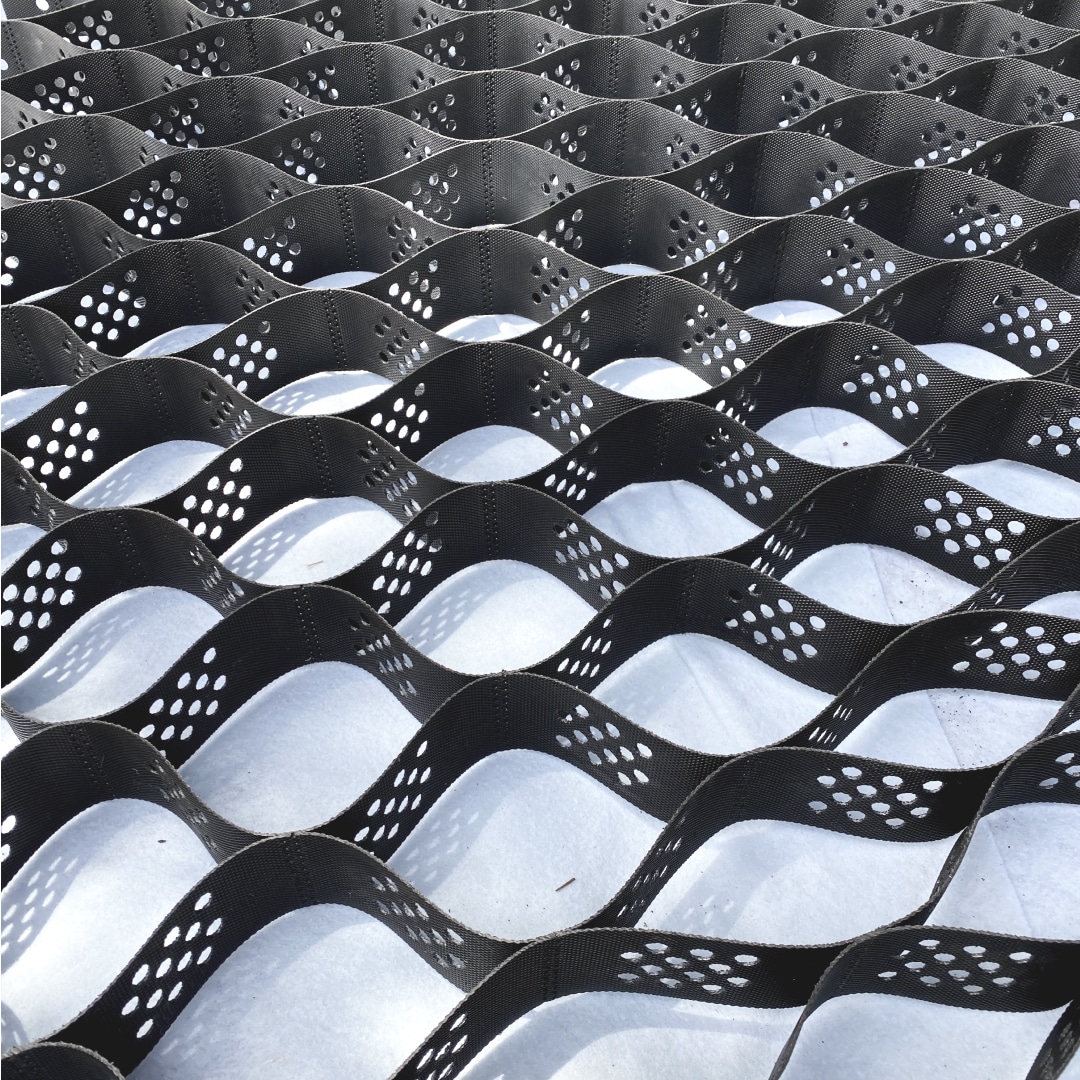

2″ BaseCore HD™ Geocell
Heavy-Duty Low-Profile Ground Stabilization
Now available in highly sought-after 2″ heights. This low-profile HD panel delivers the same stability as competitor products up to twice the height — less fill, less excavation, and faster installs. Sized at 6′ 4″ × 9′ expanded for stall floors, walkways, shed pads, paver bases, and other pedestrian or light-use applications.
- 260 mm HD welds — cells ~35% denser than Standard, nearly 50% denser than typical geocells
- Multiplied bearing capacity in a low-profile panel — stable under pedestrian and light-vehicle loads
- 2.6 mm reinforced HDPE walls · 75+ year UV-stable design life

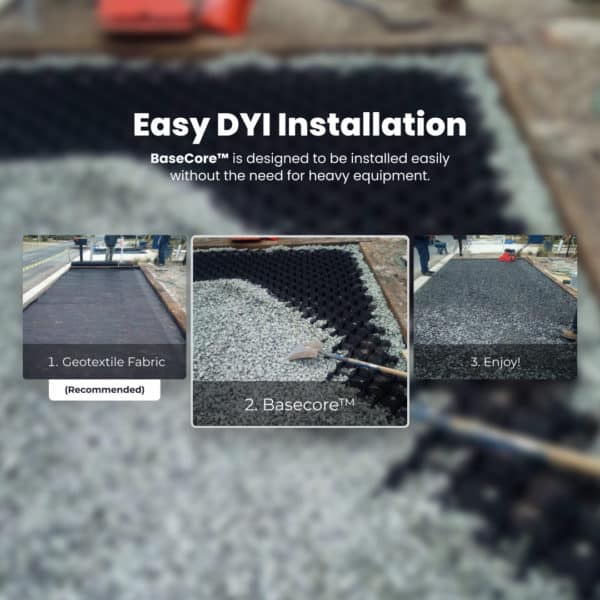

- Expanded panel 6' 4" × 9' — 54 sq ft · DIY install in an afternoon
$118.00 per panel · 54 sq ft expanded
2" BaseCore HD™ in Detail
Benefits of BaseCore HD™
Stops mud, prevents sinking, controls erosion
BaseCore HD™ sets a new standard in stability, durability, and load-bearing capacity — using less fill and less excavation than traditional methods.
Stops Mud
Confines aggregate so mud never works its way to the surface — even under sustained foot, hoof, or cart traffic.
Prevents Sinking
Spreads load across the panel and into the subgrade. Sheds, pavers, and pads stay flat and level.
⅓ Less Base Excavation
HD confinement multiplies bearing capacity, so you dig and haul a fraction of the aggregate you'd otherwise need.
Stable Ground
Smaller 7.2" × 6.0" cells lock fill in place — no shifting or pumping over time.
Erosion Control
Built-in cell perforations let water drain freely while the panel holds soil, gravel, or vegetation in place.
75+ Year Lifespan
UV-stable HDPE with reinforced welds. Engineered to outlast the structure built on top of it.
Why BaseCore HD™ costs more
Premium panel, premium return — engineered for the jobs Standard wasn't built for
The HD line uses denser cells, thicker reinforced walls, and tighter weld spacing. You pay more per panel — and recover it in less aggregate, less re-work, and decades more service life.
~35% denser cell pattern
260 mm weld spacing yields 7.2" × 6.0" cells — roughly 35% smaller than BaseCore™ Standard and nearly 50% smaller than typical industry geocells. More confinement walls per square foot means more lock-up under load.
Multiplied bearing capacity
Tighter confinement turns loose aggregate into a semi-rigid mattress. Result: sustained hoof, trailer, and skid-steer turning without rutting, pumping, or edge break-down where the Standard panel would deflect.
Pays back in fill savings
HD's confinement effect cuts required base depth — up to ⅓ less aggregate vs an un-stabilized base, and meaningfully less than Standard at the same depth. On a 100' × 200' arena that's tens of tons of stone you don't haul, spread, or pay for.
75+ year design life
Reinforced 1.7 mm UV-stable HDPE with welded seams engineered to outlast the structure built on top of it. One install, decades of stability — vs ~10 years for typical rolled-fabric solutions.
At a glance
2" BaseCore™ Standard vs 2" BaseCore HD™
Standard is the right answer for residential and mid-duty work. HD is what we spec when horses, livestock, commercial loads, or slope are in the picture.
Not sure which to spec? Call 877-835-0878 — we'll size it to your subgrade, traffic, and budget.
Save Material · Save Time
Stabilize your base while saving on fill
BaseCore HD's confinement effect multiplies bearing capacity. You need dramatically less depth — and less material — to support the same light-use load.
Without geocell
8″
Sand
400% more material
than 2″ BaseCore HD
Without geocell
5″
Gravel
250% more material
than 2″ BaseCore HD
With BaseCore HD
2″
BaseCore HD™
Equivalent or better load support
with proper fill
2″ BaseCore HD™ Applications
Use the 2″ HD for light-traffic and pedestrian surfaces — a stable, free-draining sub-base wherever you don't need the bulk of a deeper panel.

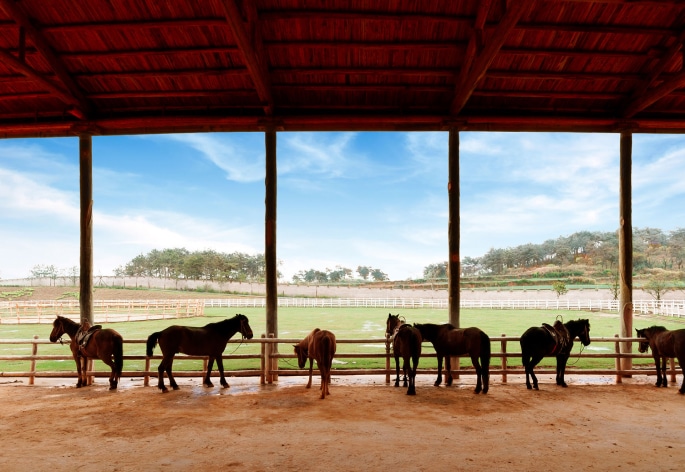

Stall Floors
Lock stone dust or gravel under stall mats for a dry, level floor that doesn't pit or trap urine in the base.

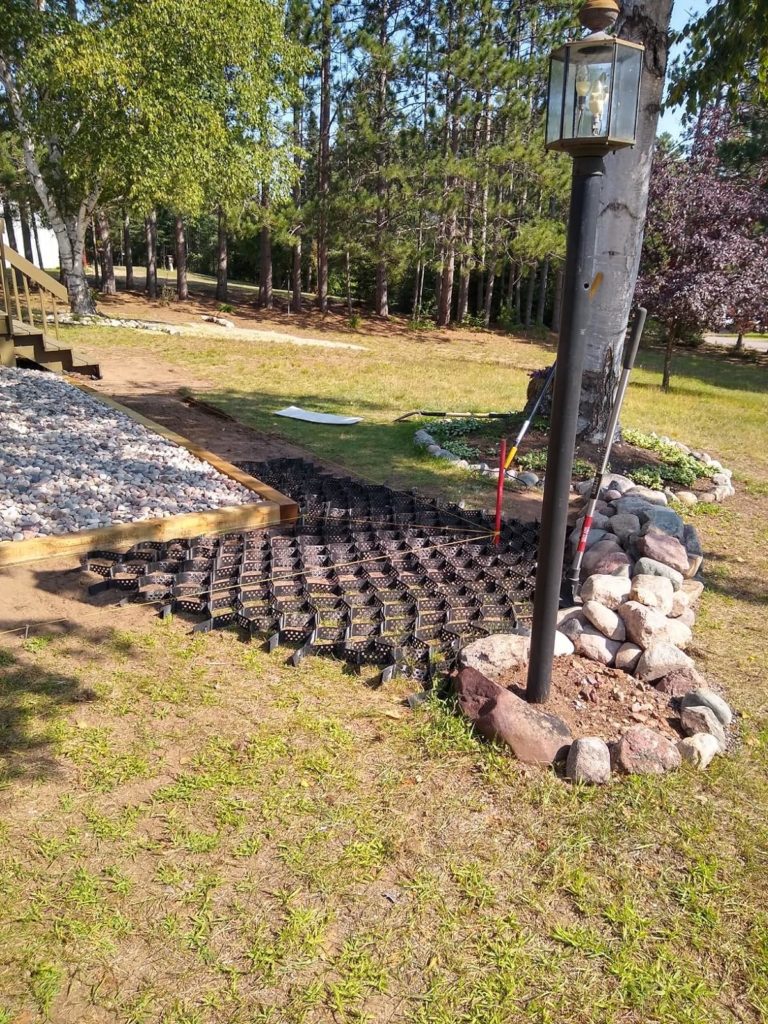

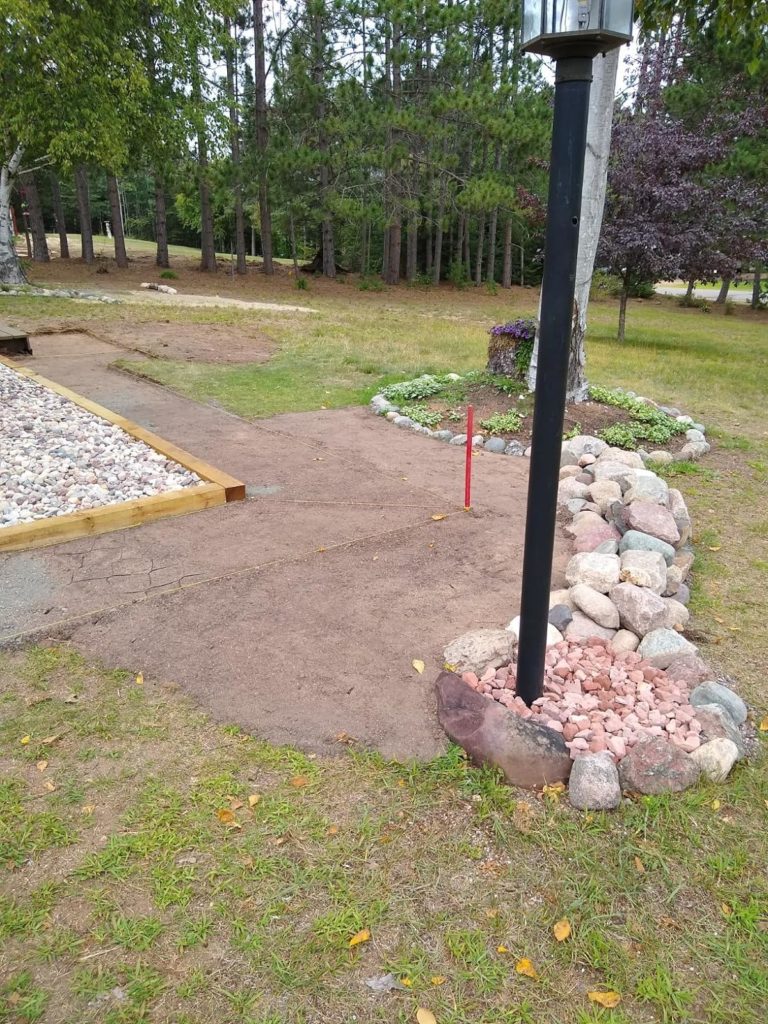

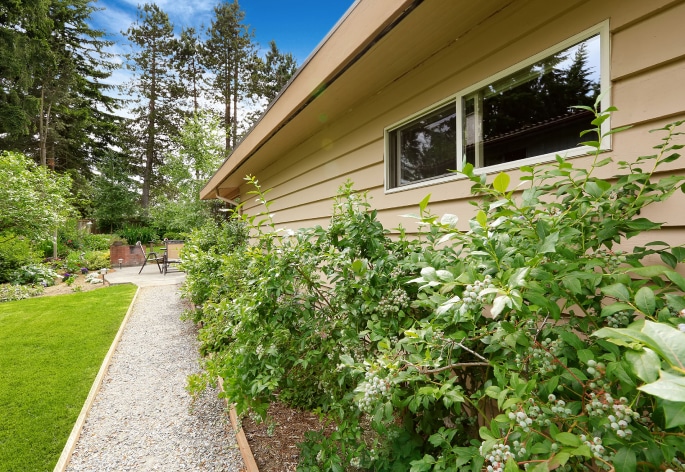

Walkways & Paths
Permanent gravel paths through gardens, barns, or yards — no annual re-grading, no migrating stone.

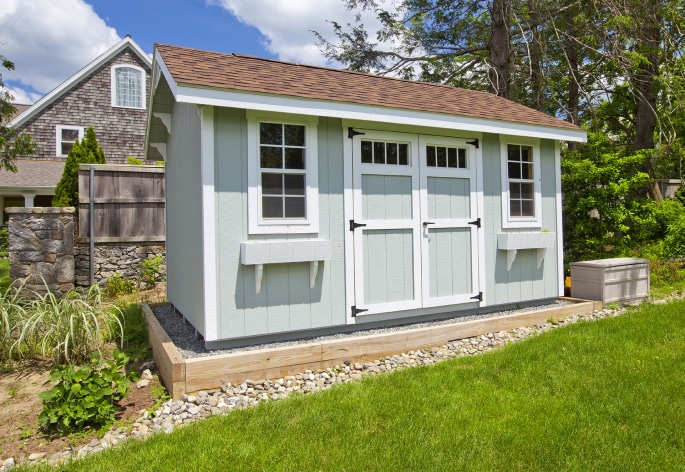

Shed & Pad Bases
Sheds, generators, hot tubs, and equipment pads stay level on a stabilized base — even on imperfect ground.

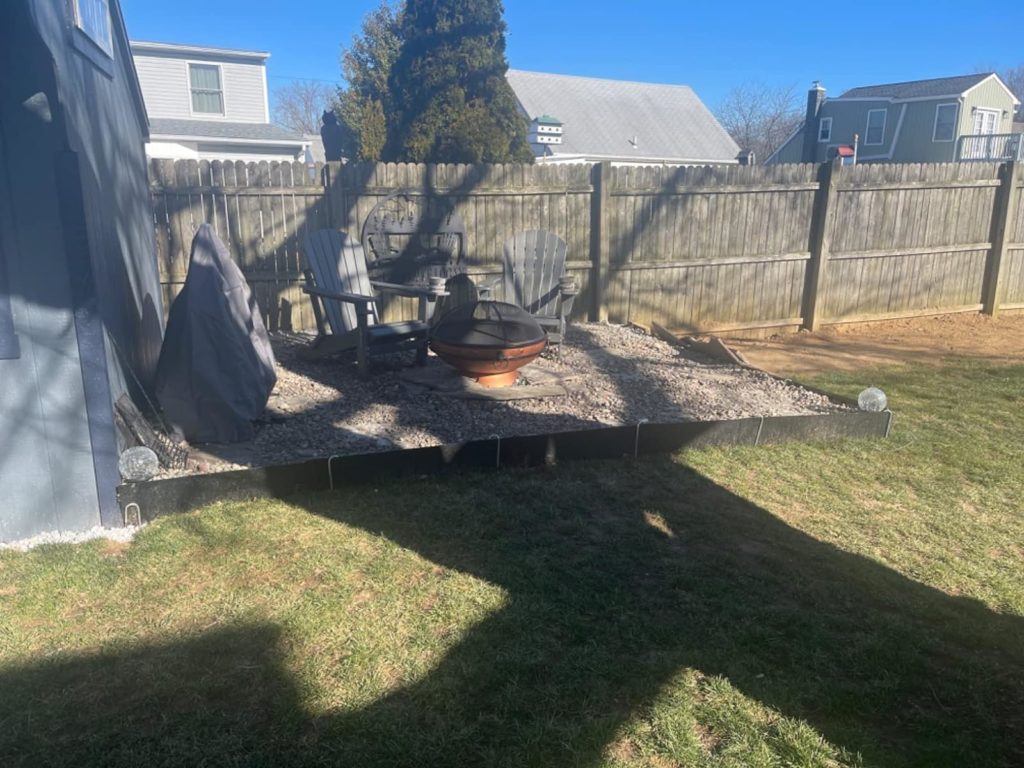

Paver Bases
Patios and walkways built on a 2" HD base eliminate the heave and settlement that ruins typical paver installs.
Light Parking & Carts
Golf carts, ATVs, and seasonal parking — the 2" HD handles light vehicle loads without the bulk of a deeper panel.

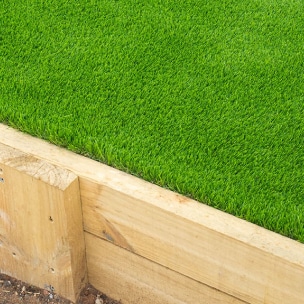

Playgrounds & Turf
A stable, free-draining sub-base under playground chips, synthetic turf, or decorative landscaping.
Pick Your Fill
Stabilize anything from grass to concrete
BaseCore HD confines whatever you pour into it. Pick the fill that matches your finished surface — the panel does the structural work either way.
Soil
Slope stabilization and vegetated surfaces — the cells hold topsoil in place against rain and runoff.
Sand
Stall floors, sand-set pavers, and beach access — confinement stops sand from migrating.
Concrete
Light pads and footings — the HD cells eliminate edge cracking and shifting at thin pours.

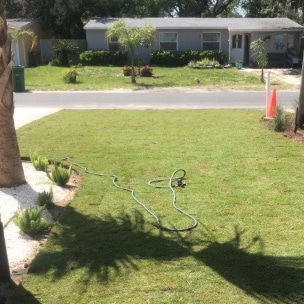

Grass
Permeable green walkways and overflow surfaces — vegetation grows in, structure stays underneath.
Gravel
Paths, stall bases, and shed pads — angular 3/4" minus interlocks inside the cells for a rock-solid surface.
Pavers
Patios and walkways — confined base layer eliminates the heave and settlement that ruins paver installs.
Order Online
Order your panels
One expanded panel covers 54 sq ft.
Quantity (panels)
Complete your install
Most installs need these to lock panels together, anchor on slopes, or ensure the infill doesn't migrate into your subbase.
Your selection
2″ BaseCore HD™ — 6' × 18'
1 panel
Build your BaseCore™ order — instant panel count & pricing
Enter your dimensions and we'll calculate the exact panels, BaseClips, and (only if your grade calls for it) anchoring you need. What we quote matches what we ship.
Anchoring becomes structurally necessary above 15°.
Recommended at install
Best Seller
Geotextile
Sits under panels to separate subgrade from fill — keeps fines from pumping up and contaminating the base.
BaseClips (Pack of 45)
Lock adjacent panels together with zero shift — engineered for HD panel seams.
BaseCaps (Pack of 12)
Flush-mount anchor caps for clean finished edges and perimeter anchoring.
Frequently asked questions
Technical Specs
View the full spec sheet
Industry-leading HD cell geometry — smaller cells, tighter welds, thicker walls, built-in drainage.
